二维切削仿真，出现错误提示，单元过度扭曲？ 50

浏览：2867 回答：4

提示如下：

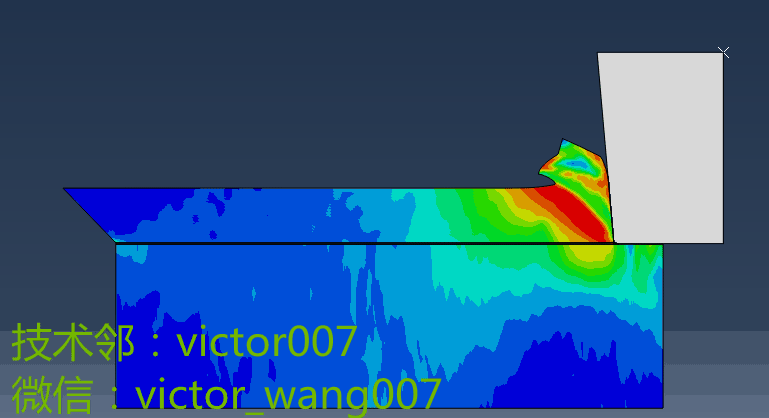

二维切削仿真，出现错误提示，单元过度扭曲？的图1 2D.zip 数据库文件

The elements contained in element set ErrElemExcessDistortion-Step1 have distorted excessively.

There are a total of 2 excessively distorted elements

The ratio of deformation speed to wave speed exceeds 1.0000 in at least one element

模型如下，设置了分离线，切屑，基体，这种情况原因从哪里找啊？大神。。。


邀请回答我来回答

全部回答

(3)

默认最新

微信公众号：FILWTBY


2017年5月11日

评论点赞

微信公众号：FILWTBY

2017年5月11日

评论点赞

微信公众号：FILWTBY

The ratio of deformation speed to wave speed exceeds 1.0000 in at least one element我发了一个帖子专门讲这个问题

2017年5月11日

评论 2 点赞
